200A 66.6mA Split Core Current Transformer for Energy Management System

Basic Info

Model NO.	ECS24200-1
Application	Electronic, Instrument
Type	Current Transformer
Phase	Three
Operation Condition	Indoor
Usage	Protection, Measurement
Winding Form	Single Layer & Tightly Wound Type
Insulating Medium	Common Insulating Materials
Installation	Active Type
Voltage Transformation Principle	Electromagnetic Type
Window Size	24 mm
Standard Cable Length	1m
Transport Package	Cartons
Specification	200g
Origin	China
HS Code	8504500000
Production Capacity	800000 PCS/Year

Product Description

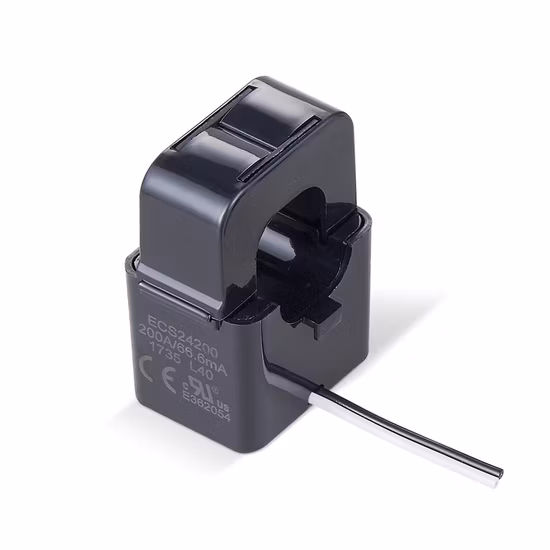

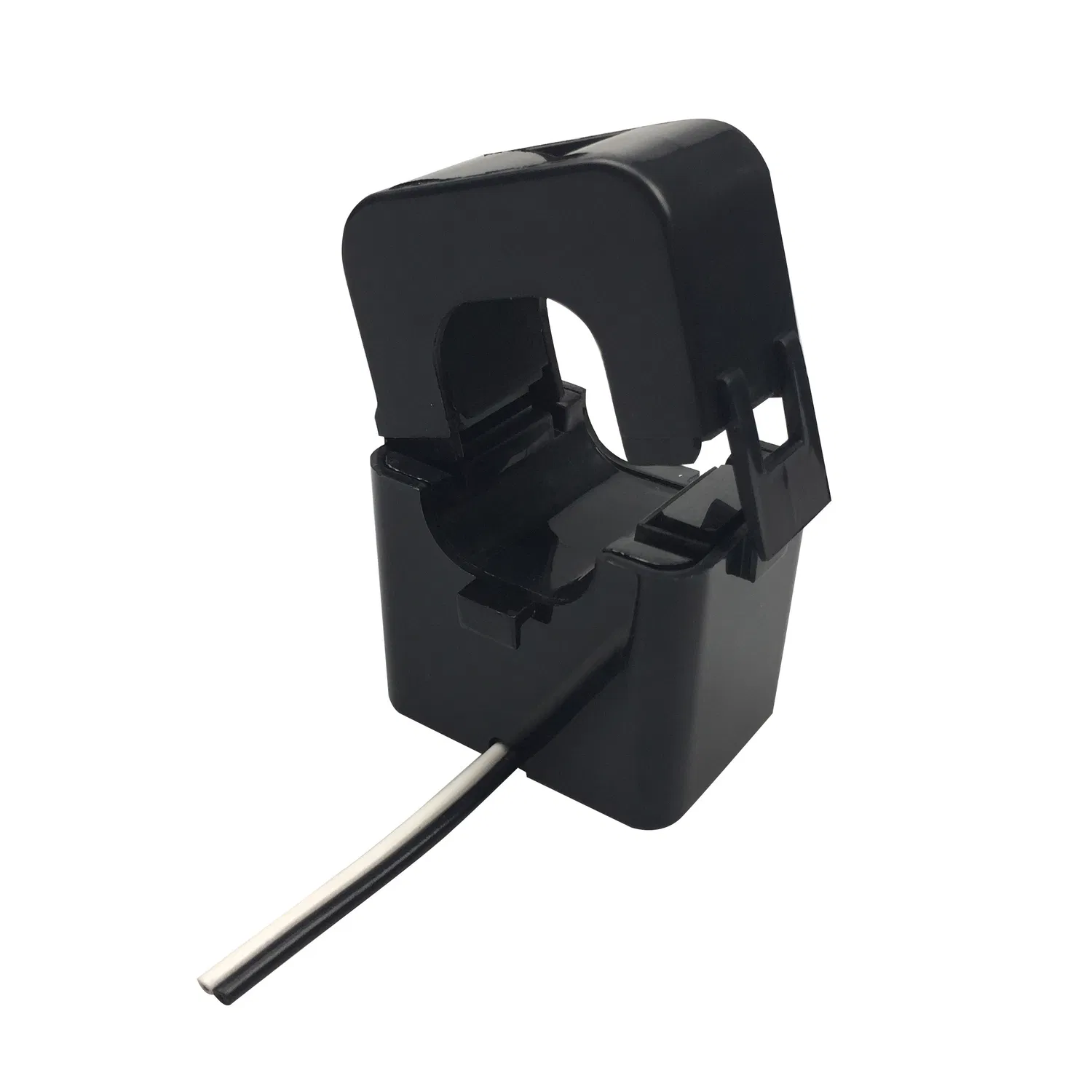

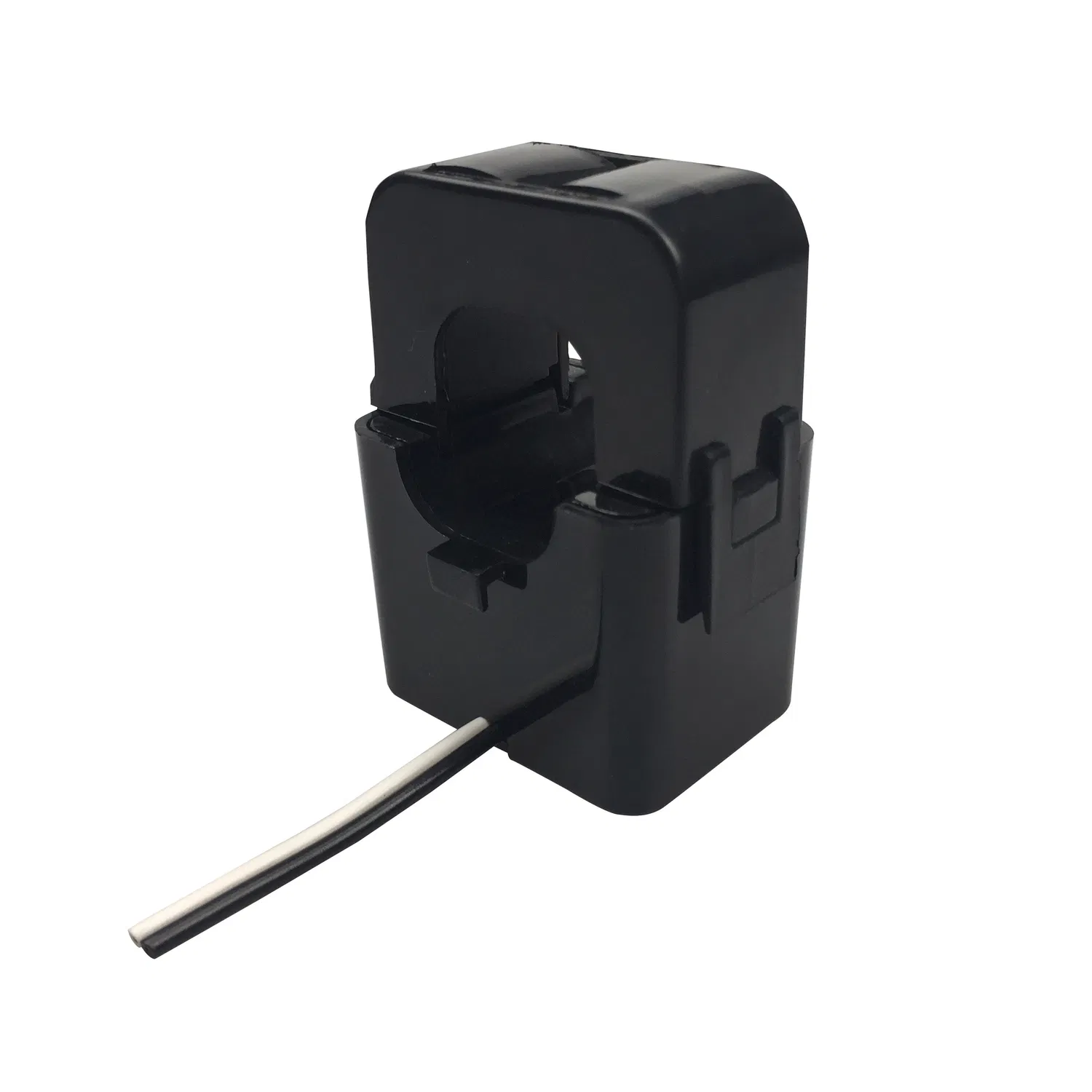

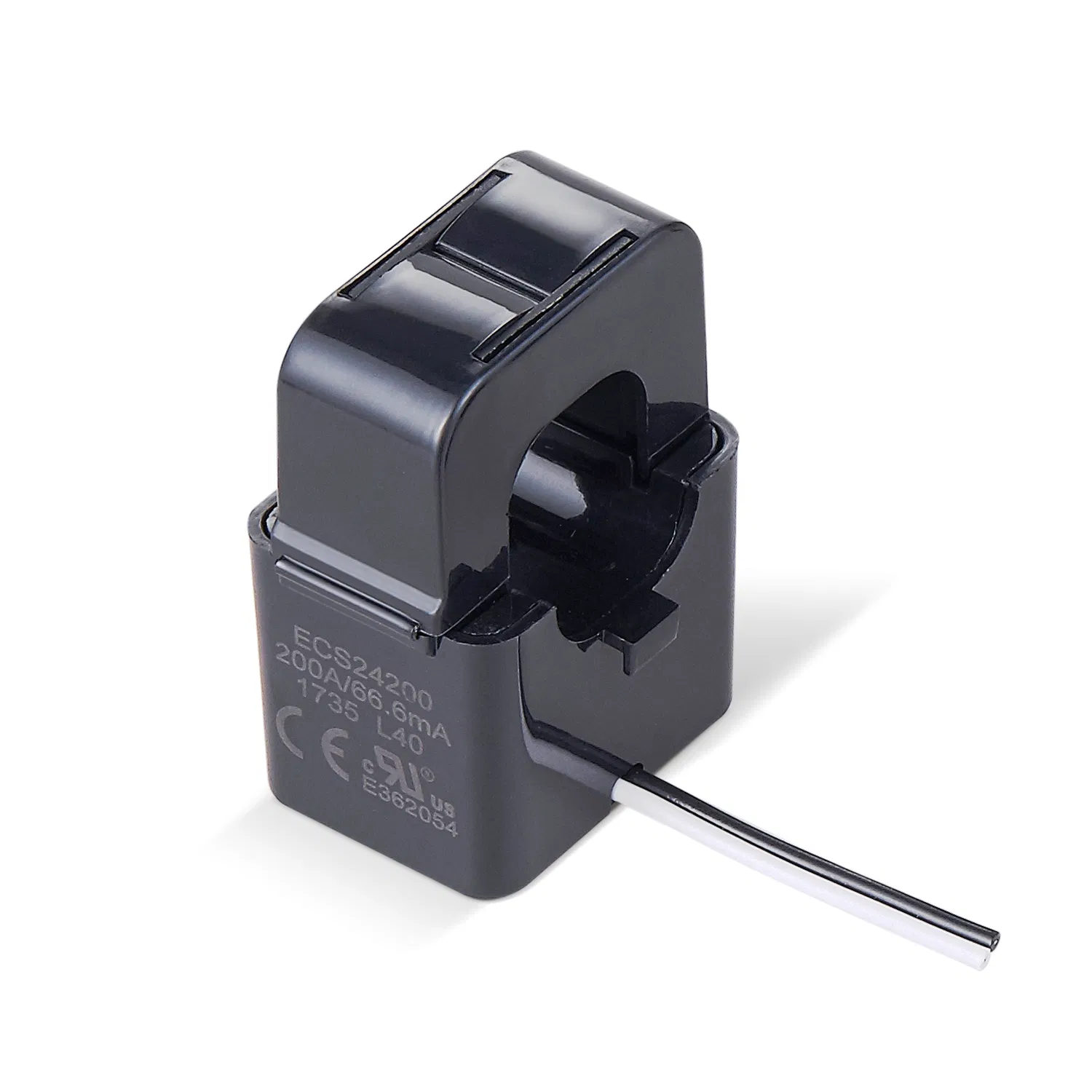

Features: ECS24200-1 is split core current transformers. This CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. Can be mounted without removing existing cables for easier installation. Specifications:Rated Primary Current(Amp.) 50/60Hz: 200nom(1~300A max)Max. Current (continuous): 400ATurnn ratio: Np:Ns=1:3000Current Ratio: 200A/66.6mAD.C.Resistance at 20 ºC: 150ΩAccuracy @RL≤10Ω: 0.5%Protection Level: 7.5 V O (peak)Phase error at rated current range: <= 1˚Operating Temperature Range: -40~85ºCStorage Temperature Range: -45~90ºCDielectric Withstanding Voltage(Hi-pot): 2.5KV/1mA/1minImpluse Withstand Voltage: 5KV PeakInsulation Resistance: DC500V/100MΩ min Certificates:UL Recognized / CE certificated / RoHsWarranty:5 yearsCustomized current ratio available:

Model	Input Current	Outputs
ECS24-100	100A	current outputs @ 40mA, 50mA, 66.6mA, 100mA, 200mA, 1A, 5Avoltage outputs @0.25V, 0.333V, 0.5V, 1V, 2V
ECS24-150	150A
ECS24-200	200A
ECS24-250	250A
ECS24-300	300A
